Verify a safety function (SIL / PFDavg)

A safety instrumented function (SIF) is a loop that brings a process to a safe state on demand: sensors that see the hazard, a logic solver that decides, and a final element — usually a valve — that acts. For a low-demand function, IEC 61511 (and IEC 61508 behind it) asks for its average probability of failure on demand, PFDavg, and the SIL band that figure falls in.

Reliafy works it out from a block diagram of the function: each element's dangerous undetected failures, the proof tests that find them, the voting between redundant channels and their common cause.

Start from the starter

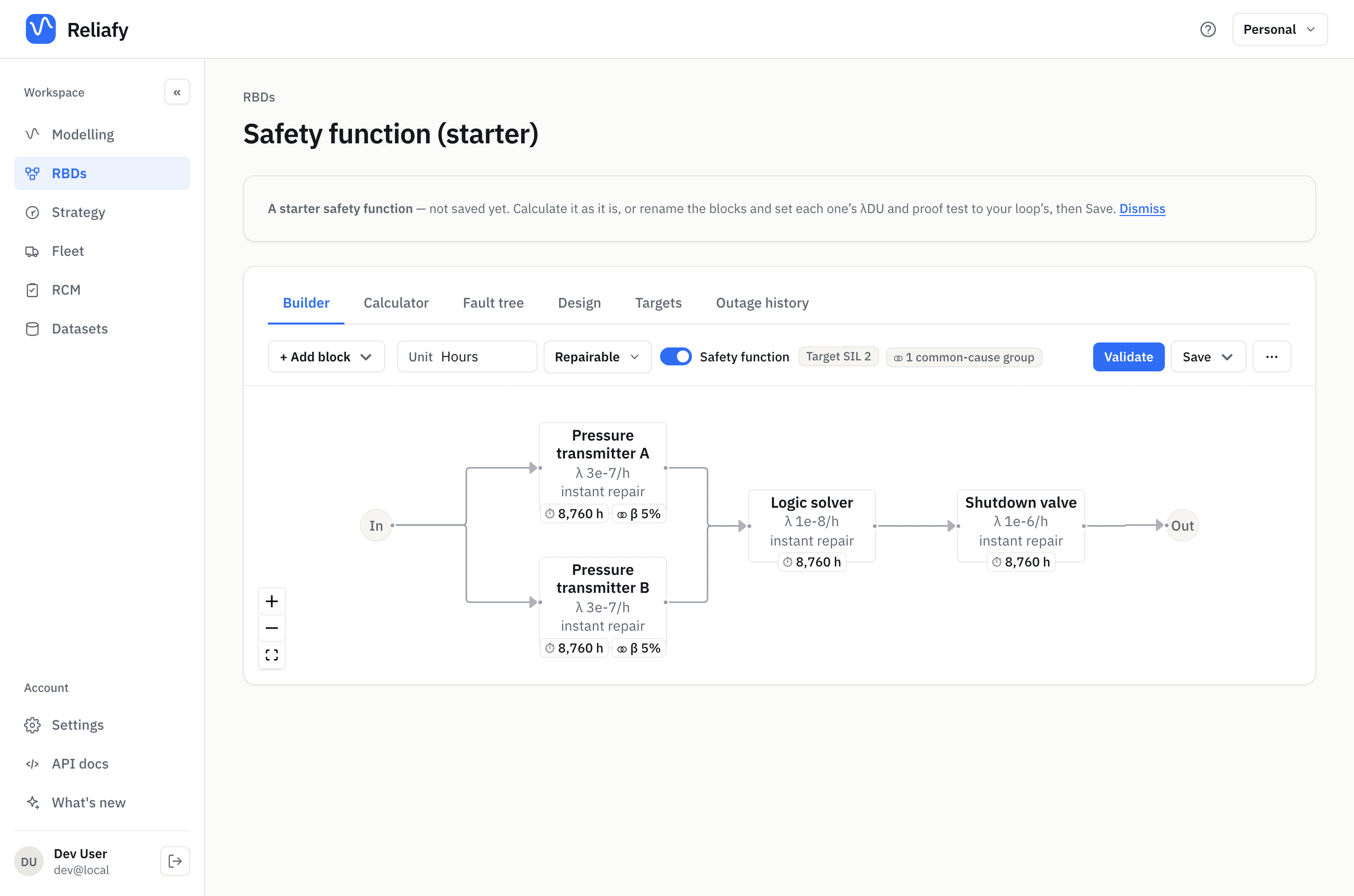

On the Modelling, RBDs or Strategy page, choose Verify a safety function (SIL / PFDavg) → Open the starter. It opens a diagram, unsaved, of the usual shape:

• two pressure transmitters voting 1oo2 (either one can trip), in a common-cause group with β = 5%;
• a logic solver;
• a shutdown valve, the final element.

Each element fails dangerously undetected at a constant rate (λDU), is proof-tested every 8,760 hours (yearly) and is repaired at once when a test finds it failed. The diagram is a Safety function, with a target of SIL 2: the switch on the builder's toolbar is on, and the chip beside it holds the target. Calculate it as it is to see the results, then make it yours.

To turn an existing diagram into a safety function instead, switch on Safety function in its toolbar. A safety function is a repairable diagram, so the switch makes it one.

Describe each element

Double-click a block to open it, or double-click its name to rename it in place (or select it and press F2).

• Name — the tag or description your report will use: every result calls the block by it.
• Failure — the dangerous undetected failures. Enter them as a Mean (the mean time to a dangerous failure, 1/λDU) or as Parameters (Exponential, failure rate λ per hour). In a safety function the life model is labelled λDU.
• Proof test — how often the element is tested, when its first test is (to stagger redundant channels' tests) and the test's coverage (below 100% when a test can't find every dangerous failure).

Failures that are found at once by diagnostics aren't part of λDU. Every block repaired instantly in the toolbar's ⋯ menu repairs every element as soon as its failure is found, the usual assumption for a PFDavg.

Voting and common cause

Two channels side by side, both feeding the next stage, are a 1oo2: either one is enough. For 2oo3 and other votes, add a Voting node (MooN) from + Add block: at least M of its N branches must work.

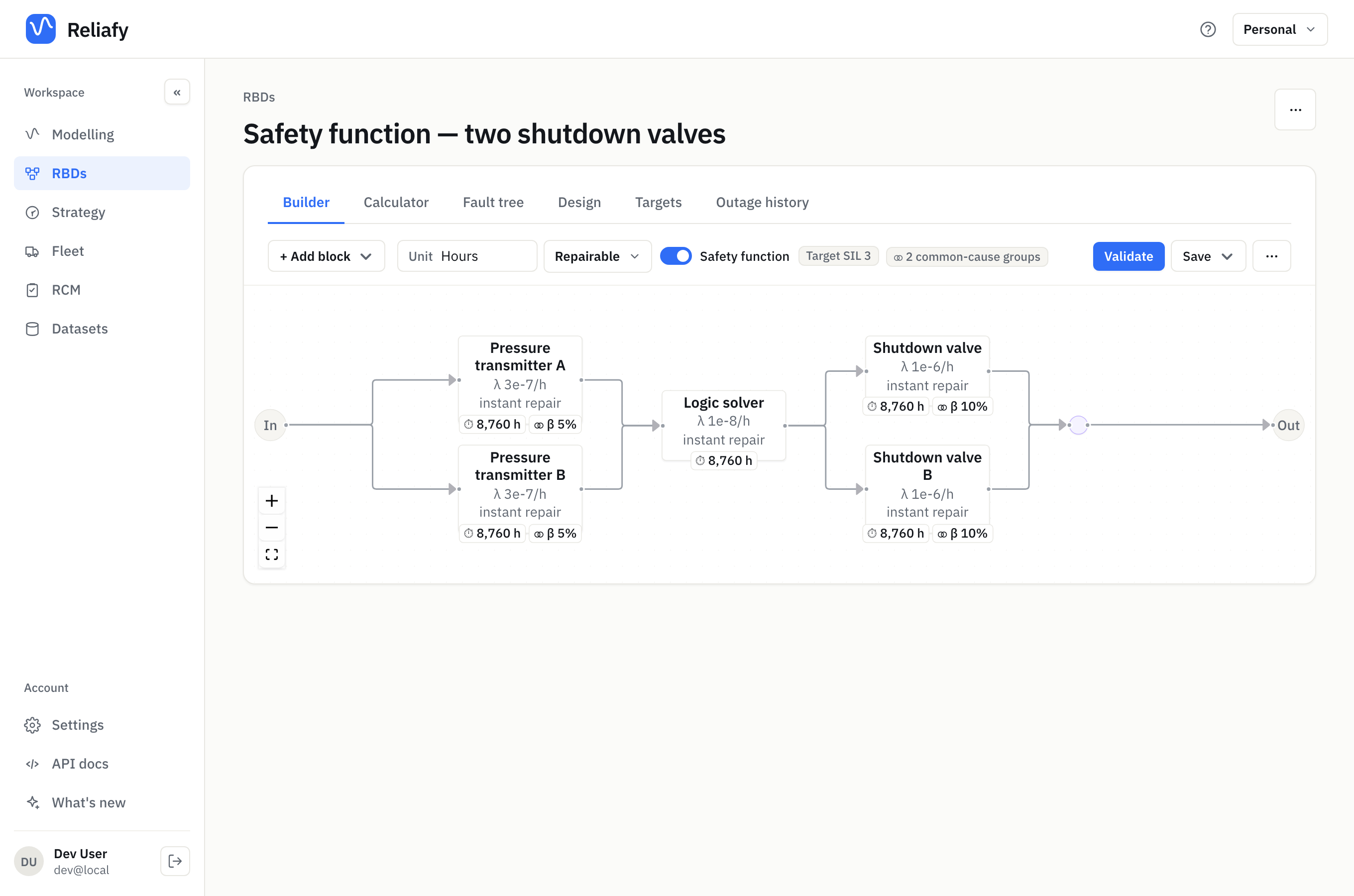

Redundant channels rarely fail independently. Select them (shift-click) and choose Common-cause group, then give β as a percentage of each one's dangerous failures that take out the whole group at once. IEC 61508-6 puts β between about 1% and 10% for sensors and final elements, depending on the defences (separation, diversity, testing). The common cause usually sets a floor under a redundant pair's PFDavg.

Read the results

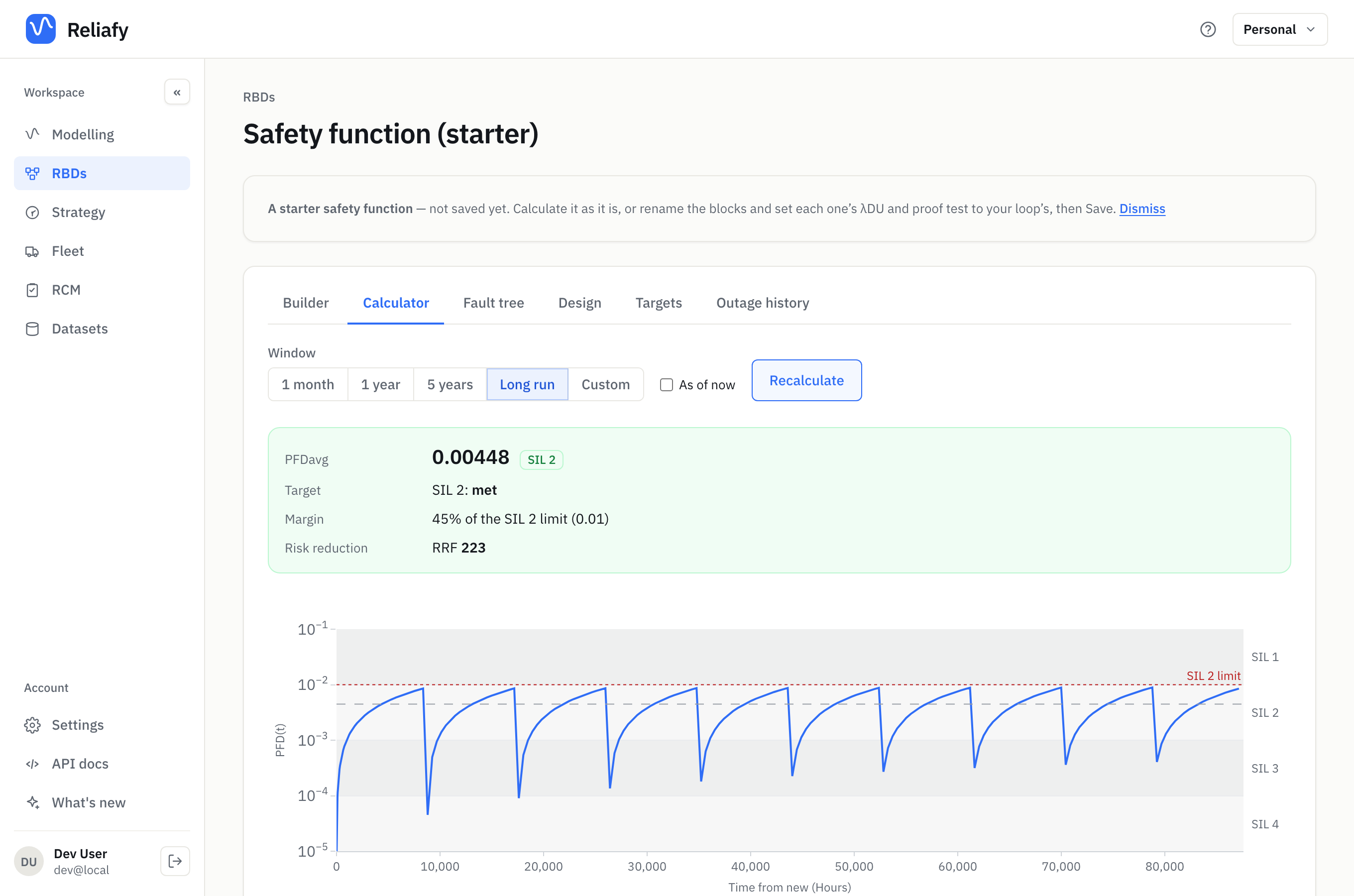

Open the Calculator and calculate. A safety function's results lead with:

• the PFDavg and the SIL band it falls in (low demand: SIL 1 below 0.1, SIL 2 below 0.01, SIL 3 below 0.001, SIL 4 below 0.0001), and whether it meets the target, with the margin to the band's limit;
• the risk reduction factor (RRF = 1 / PFDavg);
• PFD(t), which climbs between proof tests as hidden failures build up and drops at each test. Its average is the PFDavg.

Under Details, Where the PFDavg comes from lists each element's share:

• Share of PFDavg — the share of the PFDavg in which the element is one of the failed elements (its Fussell–Vesely importance). Both channels of a 1oo2 are in the same failure, so these shares add up to more than 100%. A common cause is in its members' shares.
• Share of dangerous failures — each element's share of the function's failures, with each common-cause group on a row of its own. These add up to 100%.

The element at the top is where a shorter test interval, a better element or more redundancy does the most good. In the starter it is the single shutdown valve.

What it doesn't check

The PFDavg is one requirement of a SIL. Reliafy doesn't check the architectural constraints (hardware fault tolerance and safe failure fraction), systematic capability or the demand rate, so confirm those against IEC 61511 separately. With no proof tests at all, every failure counts as found at once and the SIL is marked optimistic.

Where to go next

The Design tab's Maintenance and proof-test intervals chooses the proof-test intervals, staggered or together, that reach a target SIL at the least cost. Download as Python in the Save menu exports the diagram as a script that prints the same PFDavg and SIL.
